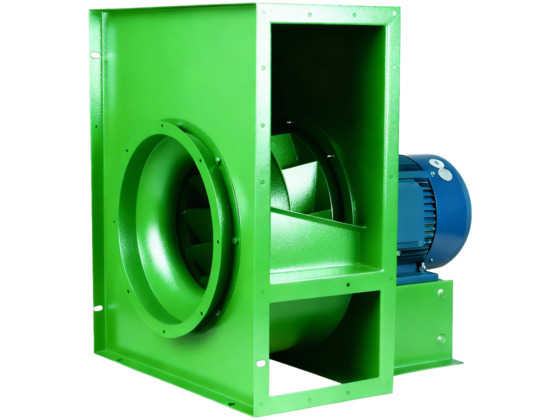

Single Inlet Centrifugal Housing Fans
BAS/BNS series are single inlet centrifugal fans. The core technologies—backward curved impeller with variable width—enable the fan operating in high-efficiency zone at 50/60Hz without VFD, delivering efficient, reliable airflow for equipment cooling, MAU (Make-up Air Units), exhaust systems, general ventilation applications with installation constraints.
Contact Us Now| Specification | BAS (Airfoil Blade) | BNS (Plate Blade) |
|---|---|---|
| Type | High Efficiency Single Inlet Fan | Standard Single Inlet Fan |
| Max Air Volume (CMH) | 90,000 | 60,000 |
| Max Pressure (Pa) | 2,700 | 2,700 |
| Size Range (mm) | 250–1,200 | 250–1,000 |
| Impeller Blades | 11 blades | 10 blades |
Constant impeller diameter with variable width, enabling the fan operation in high-efficiency zone at 50/60Hz without VFD.
Six structural options available for various installation requirements
High efficiency, stable pressure curve, suitable for variable air volume systems
Flexible drive options based on application needs
Explosion-proof versions available (BAS-Ex/BNS-Ex) for hazardous areas
International certification. AMCA Certified for air performance, CE compliant for European market standards.
BAS (Airfoil blade)
Recommended for applications where energy consumption and operational efficiency are critical factors.
BNS (Plate blade)
Cost-effective option providing reliable performance with lower initial investment.
BAS-Ex / BNS-Ex
Explosion-proof versions for hazardous locations meeting safety standards.
6 Mounting Configurations
Multiple structural options available for precise installation requirements.
BAS/BNS: Variable width
Competitors: Fixed width
Perfect cabinet matching
BAS/BNS: 6 structural options
Competitors: Limited
Installation flexibility
BAS/BNS: Available
Competitors: Partial
Wider application scope
BAS/BNS: Airfoil/Plate
Competitors: Single type
Efficiency vs cost options
Complete technical specifications, dimensional drawings, and performance curves.
Request Catalogue →Step-by-step installation and commissioning procedures for all configurations.
Read More →Regular maintenance schedules, troubleshooting, and spare parts information.
Read More →Detailed performance graphs and operating envelopes for all series sizes.
Read More →Comprehensive technical data, material specifications, and certification documents.
Read More →Recommended fan types for various equipment and industries.
→Key performance and design advantages over traditional options.
→Quick reference for choosing between BAS and BNS models.
→Standard configuration pricing. (Coming Soon)
→Submit your email to receive product drawings, performance curves, and specs.
→
